Buick Encore: Vehicle Checks / Engine Compartment Overview
![Buick Encore. Engine Compartment Overview](images/engine_compartment_overview-310/1/buick_encore_engine_compartment_overview_533.gif)
- Engine Air Cleaner/Filter.
- Engine Oil Fill Cap. See Engine Oil.
- Engine Oil Dipstick. See Engine Oil.
- Engine Cooling Fan (Out of View). See
Cooling System.
- Engine Coolant Surge Tank and Pressure
Cap. See Cooling System.
- Brake Fluid Reservoir. See Brakes.
- Auxiliary Fuse Block. See Engine
Compartment Fuse Block.
- Battery - North America.
- Windshield Washer Fluid Reservoir. See
Washer Fluid.
- Engine Compartment Fuse Block.

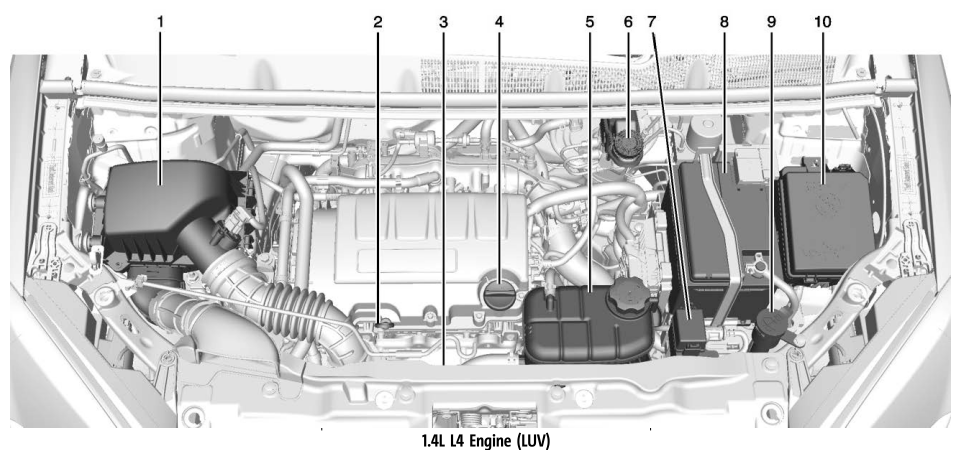

![Buick Encore. Engine Compartment Overview](images/engine_compartment_overview-310/1/buick_encore_engine_compartment_overview_534.gif)
- Engine Air Cleaner/Filter.
- Engine Oil Dipstick. See Engine Oil.
- Engine Cooling Fan (Out of View). See
Cooling System.
- Engine Oil Fill Cap. See Engine Oil.
- Engine Coolant Surge Tank and Pressure
Cap. See Cooling System.
- Brake Fluid Reservoir. See Brakes.
- Auxiliary Fuse Block. See Engine
Compartment Fuse Block.
- Battery - North America.
- Windshield Washer Fluid Reservoir. See
Washer Fluid.
- Engine Compartment Fuse Block.
Warning
Turn the vehicle off before opening the
hood. If the engine is running with the
hood open, you or others could be
injured.
Warning
Components under the hood can get hot
from running the engine...
To ensure proper engine performance and
long life, careful attention must be paid to
engine oil. Following these simple, but
important steps will help protect your
investment:
Use engine oil approved to the proper
specification and of the proper viscosity
grade...
Other information:
If equipped, music may be played from a
paired Bluetooth device. See Bluetooth
(Overview for 8 Inch Screen) or
Bluetooth (Pairing and Using the Phone for 8
Inch Screen) or
Bluetooth (Voice Recognition for 8 Inch
Screen) for help pairing a device...
The cooling system allows the engine to
maintain the correct working temperature.
Engine Cooling Fan (Out of View)
Engine Coolant Surge Tank and Pressure Cap
Engine Cooling Fan (Out of View)
Engine Coolant Surge Tank and
Pressure Cap
Warning
An underhood electric fan can start up
even when the engine is not running and
can cause injury...
